Table openpetra_trunk.public.a_analysis_type
Types of analysis attributes.

 Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
a_analysis_type_code_c varchar 16
a_analysis_attribute.a_analysis_type_code_c a_analysis_attribute_fk2 R
a_freeform_analysis.a_analysis_type_code_c a_freeform_analysis_fk2 R
a_analysis_type_description_c varchar 64 This is a short description which is 32 charcters long
a_analysis_mode_l bool 1 true Shows what type of analysis attribute it is
a_analysis_store_c varchar 64  √  null
a_analysis_element_c varchar 64  √  null The name of the field within a table which will be used as the analysis attribute
a_system_analysis_type_l bool 1  √  false To indicate whether the user or system has set up the analysis type.
s_date_created_d date 13  √  ('now'::text)::date
s_created_by_c varchar 20  √  null
s_user.s_user_id_c a_analysis_type_fkcr R
s_date_modified_d date 13  √  null
s_modified_by_c varchar 20  √  null
s_user.s_user_id_c a_analysis_type_fkmd R
s_modification_id_c varchar 150  √  null

Table contained 6 rows at Do Nov 10 18:00 MEZ 2011

Indexes:
Column(s) Type Sort Constraint Name
a_analysis_type_code_c Primary key Asc a_analysis_type_pk
s_created_by_c Performance Asc inx_a_analysis_type_fkcr_key1
s_modified_by_c Performance Asc inx_a_analysis_type_fkmd_key2
a_analysis_type_code_c Must be unique Asc inx_a_analysis_type_pk0

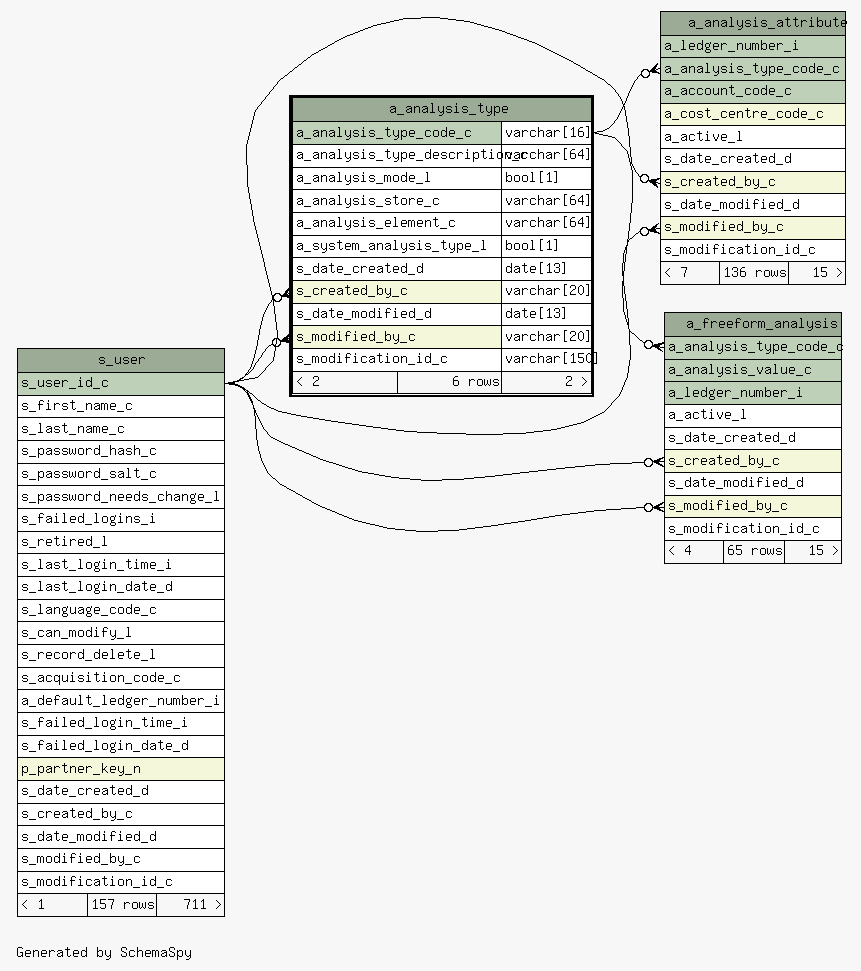

Close relationships  within of separation:
