Table openpetra_trunk.public.a_ap_anal_attrib
Analysis Attributes applied to an AP for posting to the GL.

 Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
a_ledger_number_i int4 10 0
a_analysis_attribute.a_ledger_number_i a_ap_anal_attrib_fk2 R
a_ap_document_detail.a_ledger_number_i a_ap_anal_attrib_fk1 R
a_account.a_ledger_number_i a_ap_anal_attrib_fk3 R
a_freeform_analysis.a_ledger_number_i a_ap_anal_attrib_fk4 R
The ledger that the attribute value is associated with.
a_ap_number_i int4 10 0
a_ap_document_detail.a_ap_number_i a_ap_anal_attrib_fk1 R
Accounts Payable Sequence Number
a_detail_number_i int4 10 0
a_ap_document_detail.a_detail_number_i a_ap_anal_attrib_fk1 R
The detail number within the invoice/ accounts payable.
a_analysis_type_code_c varchar 16
a_analysis_attribute.a_analysis_type_code_c a_ap_anal_attrib_fk2 R
a_freeform_analysis.a_analysis_type_code_c a_ap_anal_attrib_fk4 R
a_account_code_c varchar 16
a_account.a_account_code_c a_ap_anal_attrib_fk3 R
a_analysis_attribute.a_account_code_c a_ap_anal_attrib_fk2 R
This identifies the account the financial transaction must be stored against
a_analysis_attribute_value_c varchar 80  √  null
a_freeform_analysis.a_analysis_value_c a_ap_anal_attrib_fk4 R
s_date_created_d date 13  √  ('now'::text)::date
s_created_by_c varchar 20  √  null
s_user.s_user_id_c a_ap_anal_attrib_fkcr R
s_date_modified_d date 13  √  null
s_modified_by_c varchar 20  √  null
s_user.s_user_id_c a_ap_anal_attrib_fkmd R
s_modification_id_c varchar 150  √  null

Table contained 0 rows at Mi Nov 09 18:02 MEZ 2011

Indexes:
Column(s) Type Sort Constraint Name
a_ledger_number_i + a_ap_number_i + a_detail_number_i + a_analysis_type_code_c Primary key Asc/Asc/Asc/Asc a_ap_anal_attrib_pk
a_ledger_number_i + a_ap_number_i + a_detail_number_i Performance Asc/Asc/Asc inx_a_ap_anal_attrib_fk1_key1
a_ledger_number_i + a_account_code_c + a_analysis_type_code_c Performance Asc/Asc/Asc inx_a_ap_anal_attrib_fk2_key2
a_ledger_number_i + a_account_code_c Performance Asc/Asc inx_a_ap_anal_attrib_fk3_key3
a_ledger_number_i + a_analysis_type_code_c + a_analysis_attribute_value_c Performance Asc/Asc/Asc inx_a_ap_anal_attrib_fk4_key4
s_created_by_c Performance Asc inx_a_ap_anal_attrib_fkcr_key5
s_modified_by_c Performance Asc inx_a_ap_anal_attrib_fkmd_key6
a_ledger_number_i + a_ap_number_i + a_detail_number_i + a_analysis_type_code_c Must be unique Asc/Asc/Asc/Asc inx_a_ap_anal_attrib_pk0

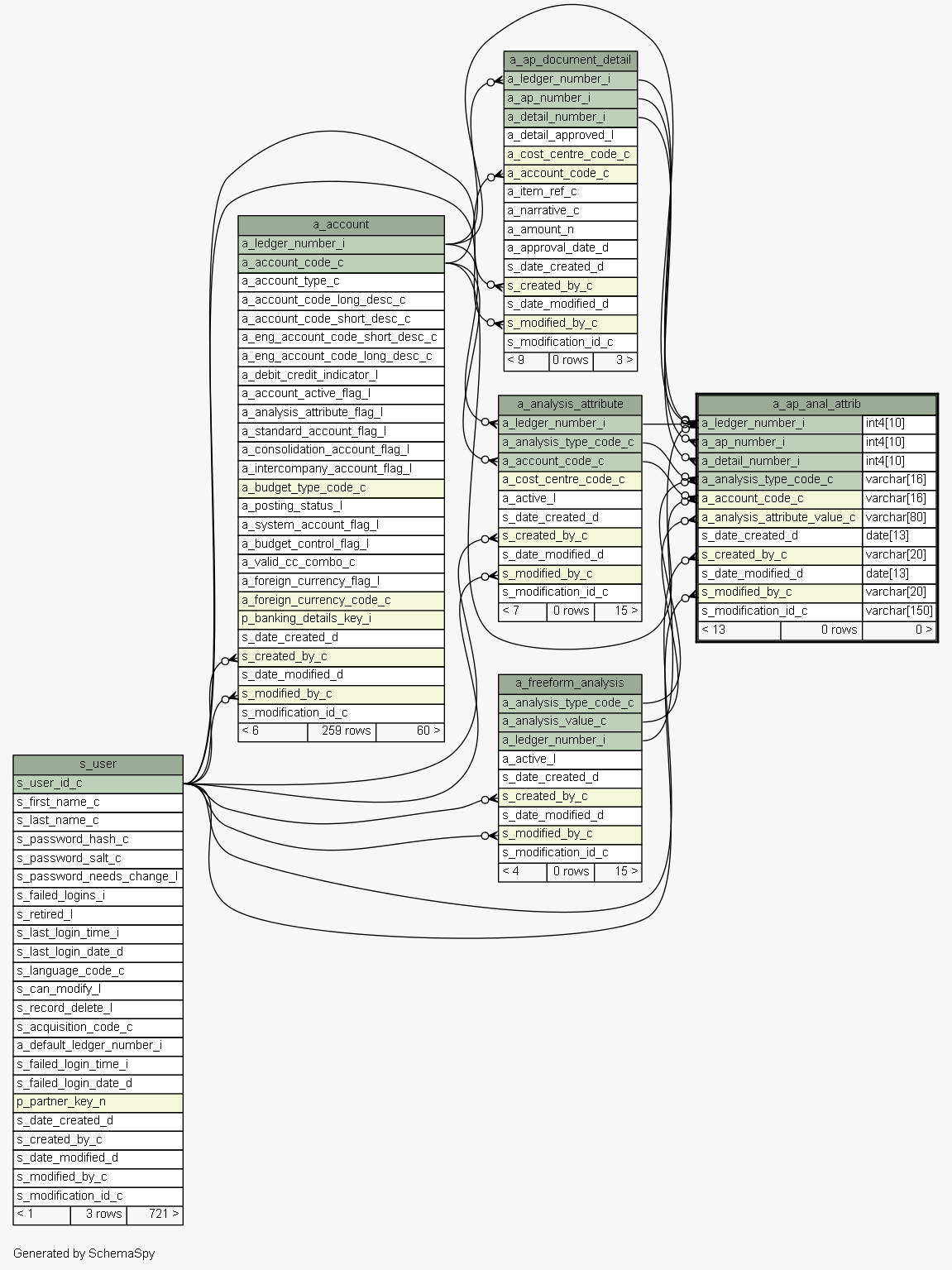

Close relationships  within of separation:
