Table openpetra_trunk.public.m_extract_type
Contains a list of extract type which is needed when extracts need to be rerun

 Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
m_code_c varchar 50
m_extract_master.m_extract_type_code_c m_extract_master_fk4 R
Extract Type Code
m_function_c varchar 500  √  null Function that is run to create the extract (4GL function, Delphi, etc.)
m_description_c varchar 200  √  null Description of Extract Type
s_date_created_d date 13  √  ('now'::text)::date
s_created_by_c varchar 20  √  null
s_user.s_user_id_c m_extract_type_fkcr R
s_date_modified_d date 13  √  null
s_modified_by_c varchar 20  √  null
s_user.s_user_id_c m_extract_type_fkmd R
s_modification_id_c varchar 150  √  null

Table contained 0 rows at Mi Nov 09 18:02 MEZ 2011

Indexes:
Column(s) Type Sort Constraint Name
m_code_c Primary key Asc m_extract_type_pk
m_code_c Performance Asc inx_m_extract_master_fk4_ref0
s_created_by_c Performance Asc inx_m_extract_type_fkcr_key2
s_modified_by_c Performance Asc inx_m_extract_type_fkmd_key3
m_code_c Must be unique Asc inx_m_extract_type_pk1

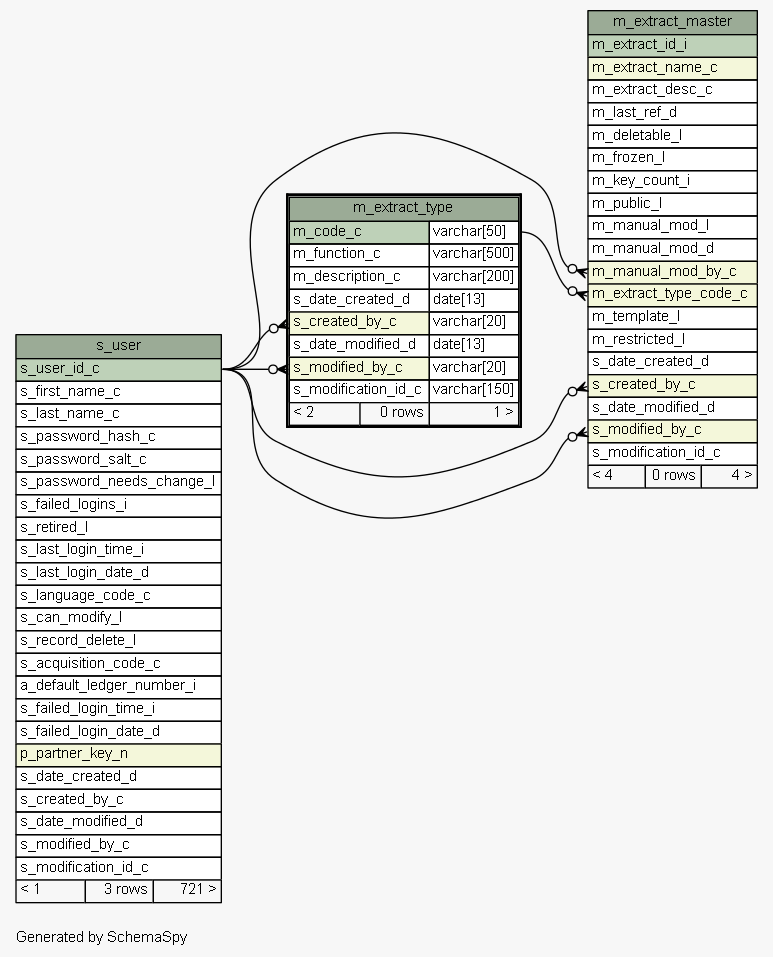

Close relationships  within of separation:
