Table openpetra_trunk.public.p_language
List of language codes

 Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
p_language_code_c varchar 20
a_currency_language.p_language_code_c a_currency_language_fk2 R
p_addressee_title_override.p_language_code_c p_addressee_title_override_fk1 R
p_formality.p_language_code_c p_formality_fk1 R
p_partner.p_language_code_c p_partner_fk2 R
p_publication.p_publication_language_c p_publication_fk2 R
pm_person_language.p_language_code_c pm_person_language_fk2 R
pm_person_skill.pm_description_language_c pm_person_skill_fk3 R
pm_personal_data.p_language_code_c pm_personal_data_fk3 R
pm_short_term_application.pm_st_congress_language_c pm_short_term_application_fk13 R
s_error_message.s_language_code_c s_error_message_fk1 R
s_language_specific.s_language_code_c s_language_specific_fk1 R
s_logon_message.s_language_code_c s_logon_message_fk1 R
um_job_language.p_language_code_c um_job_language_fk2 R
um_unit_language.p_language_code_c um_unit_language_fk2 R
This is the code used to identify a language.
p_language_description_c varchar 80
p_congress_language_l bool 1  √  false This field indicates whether or not the language is one that is 'officially' used at conferences. These are the languages for which translation could be provided.
p_deletable_l bool 1  √  true This defines if the language code can be deleted. This can only be updated by the system manager. At the risk of serious operational integrity. Default to Yes
s_date_created_d date 13  √  ('now'::text)::date
s_created_by_c varchar 20  √  null
s_user.s_user_id_c p_language_fkcr R
s_date_modified_d date 13  √  null
s_modified_by_c varchar 20  √  null
s_user.s_user_id_c p_language_fkmd R
s_modification_id_c varchar 150  √  null

Table contained 55 rows at Mi Nov 09 18:02 MEZ 2011

Indexes:
Column(s) Type Sort Constraint Name
p_language_code_c Primary key Asc p_language_pk
s_created_by_c Performance Asc inx_p_language_fkcr_key1
s_modified_by_c Performance Asc inx_p_language_fkmd_key2
p_language_code_c Must be unique Asc inx_p_language_pk0

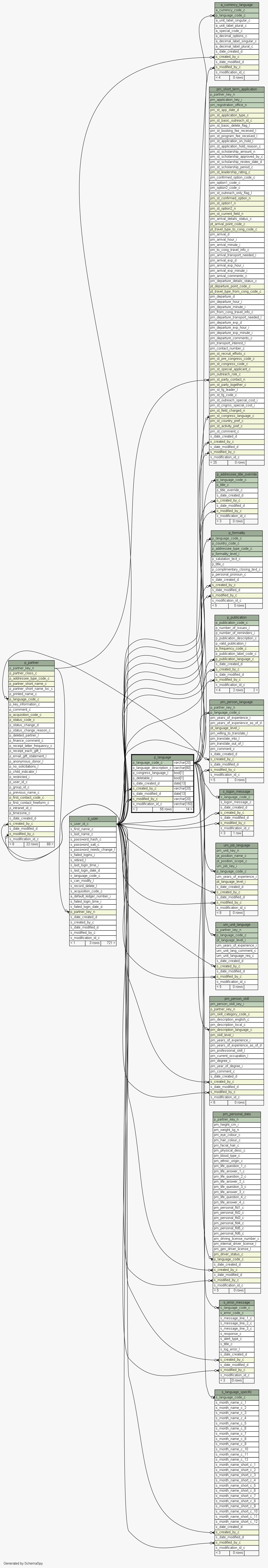

Close relationships  within of separation:
