Table openpetra_trunk.public.pt_travel_type
This table contains the codes that indicate the mode of travel being used.

 Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
pt_code_c varchar 32
pm_short_term_application.pt_travel_type_from_cong_code_c pm_short_term_application_fk9 R
pm_short_term_application.pt_travel_type_to_cong_code_c pm_short_term_application_fk8 R
This code indicates the different types of travel.
pt_description_c varchar 80  √  null This describes the types of travel .
pt_unassignable_flag_l bool 1  √  false Indicates if this code can still be assigned?
pt_unassignable_date_d date 13  √  null Date from which this code was made unassignable.
pt_deletable_flag_l bool 1  √  true Indicates if a record can be deleted.
s_date_created_d date 13  √  ('now'::text)::date
s_created_by_c varchar 20  √  null
s_user.s_user_id_c pt_travel_type_fkcr R
s_date_modified_d date 13  √  null
s_modified_by_c varchar 20  √  null
s_user.s_user_id_c pt_travel_type_fkmd R
s_modification_id_c varchar 150  √  null

Table contained 6 rows at Mi Nov 09 18:02 MEZ 2011

Indexes:
Column(s) Type Sort Constraint Name
pt_code_c Primary key Asc pt_travel_type_pk
s_created_by_c Performance Asc inx_pt_travel_type_fkcr_key1
s_modified_by_c Performance Asc inx_pt_travel_type_fkmd_key2
pt_code_c Must be unique Asc inx_pt_travel_type_pk0

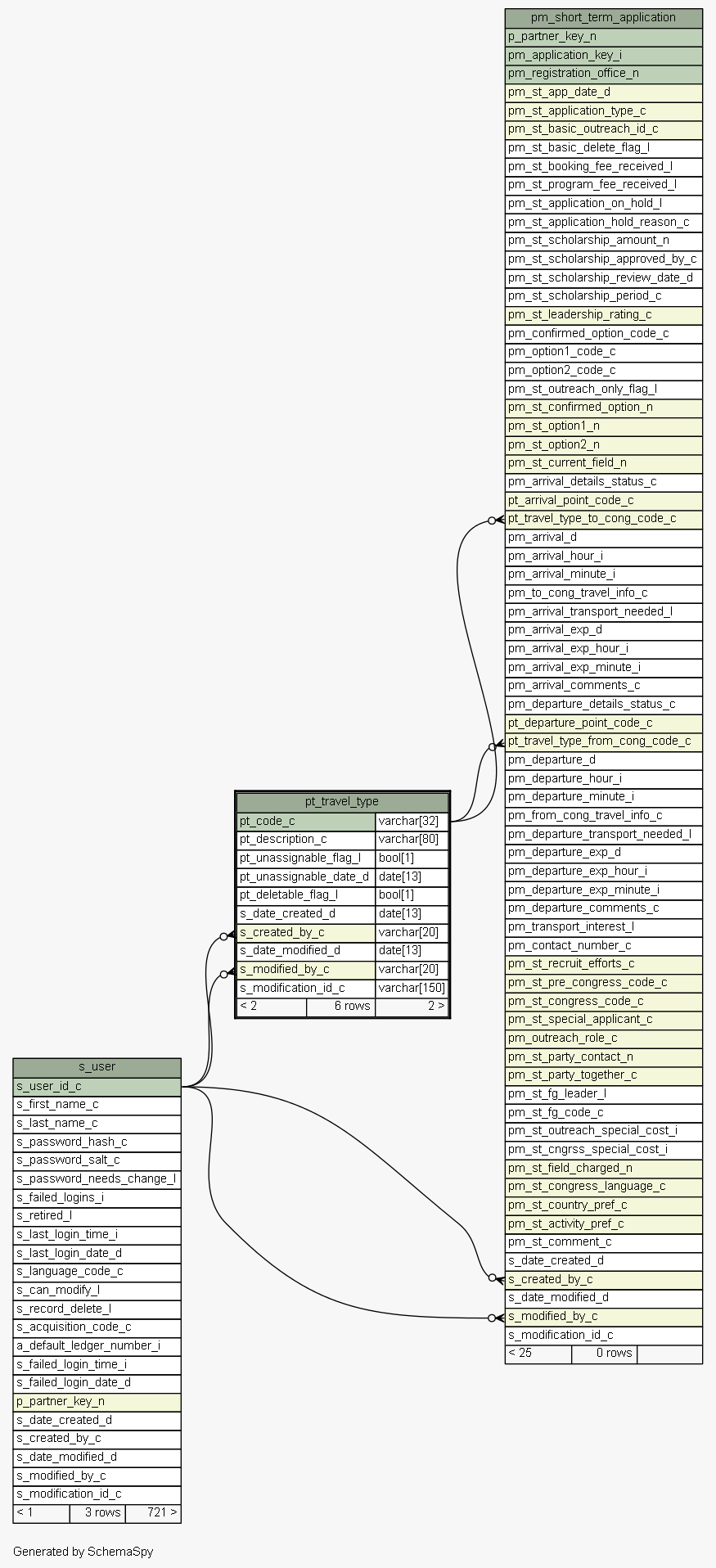

Close relationships  within of separation:
