Table openpetra_trunk.public.s_function
Contains all Petra functions to which access can be granted or denied

 Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
s_function_id_c varchar 30
s_function_relationship.s_function_1_c s_function_relationship_fk1 R
s_function_relationship.s_function_2_c s_function_relationship_fk2 R
s_group_function.s_function_id_c s_group_function_fk2 R
s_workflow_step.s_function_id_c s_workflow_step_fk2 R
Identifier for the particular function
s_module_name_c varchar 200 Petra Module which contains the function
s_sub_module_name_c varchar 200  √  null Petra Sub-Module which contains the function
s_function_name_c varchar 200 Function name
s_filename_c varchar 200  √  null Filename associated with the function
s_date_created_d date 13  √  ('now'::text)::date
s_created_by_c varchar 20  √  null
s_user.s_user_id_c s_function_fkcr R
s_date_modified_d date 13  √  null
s_modified_by_c varchar 20  √  null
s_user.s_user_id_c s_function_fkmd R
s_modification_id_c varchar 150  √  null

Table contained 0 rows at Mi Nov 09 18:02 MEZ 2011

Indexes:
Column(s) Type Sort Constraint Name
s_function_id_c Primary key Asc s_function_pk
s_created_by_c Performance Asc inx_s_function_fkcr_key2
s_modified_by_c Performance Asc inx_s_function_fkmd_key3
s_function_id_c Must be unique Asc inx_s_function_pk1
s_function_id_c Performance Asc inx_s_group_function_fk2_ref0

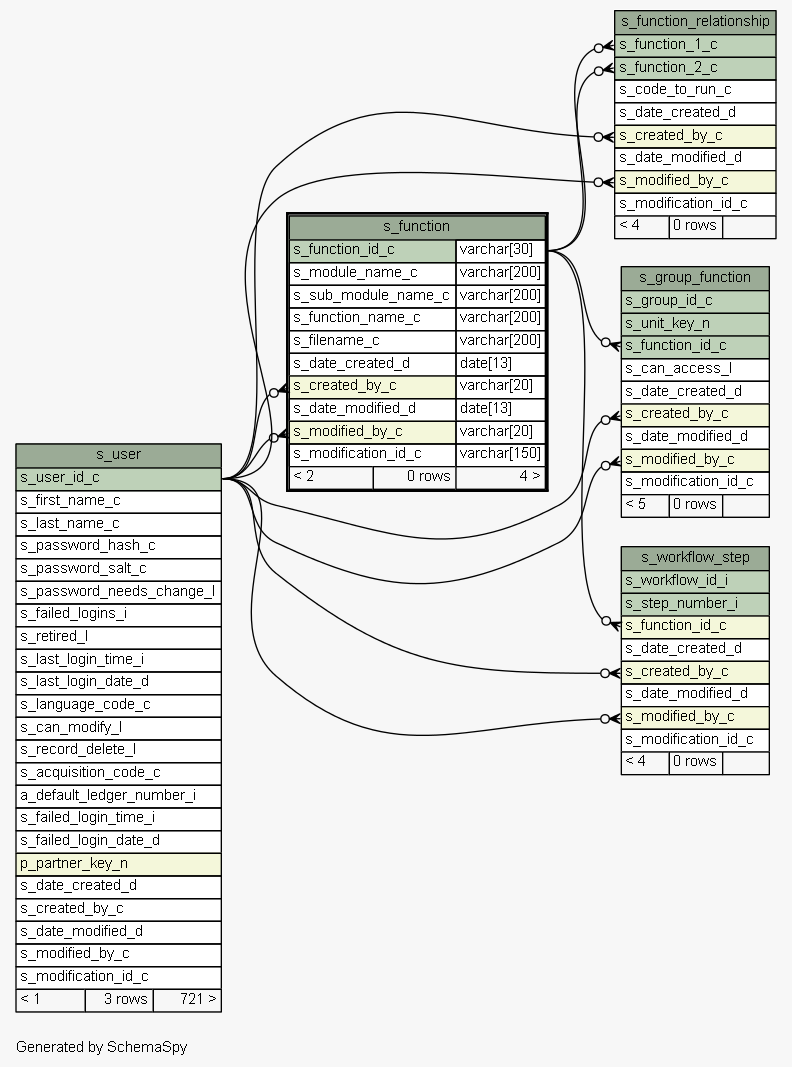

Close relationships  within of separation:
