Table openpetra_trunk.public.s_workflow_user
Which users have access to this workflow

 Generated by
SchemaSpy
Legend: SourceForge.net
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
s_workflow_id_i int4 10
s_workflow_definition.s_workflow_id_i s_workflow_user_fk1 R
Workflow ID
s_user_id_c varchar 20
s_user.s_user_id_c s_workflow_user_fk2 R
The user that has access to the workflow
s_date_created_d date 13  √  ('now'::text)::date
s_created_by_c varchar 20  √  null
s_user.s_user_id_c s_workflow_user_fkcr R
s_date_modified_d date 13  √  null
s_modified_by_c varchar 20  √  null
s_user.s_user_id_c s_workflow_user_fkmd R
s_modification_id_c varchar 150  √  null

Table contained 0 rows at Mi Nov 09 18:02 MEZ 2011

Indexes:
Column(s) Type Sort Constraint Name
s_workflow_id_i + s_user_id_c Primary key Asc/Asc s_workflow_user_pk
s_workflow_id_i Performance Asc inx_s_workflow_user_fk1_key1
s_user_id_c Performance Asc inx_s_workflow_user_fk2_key2
s_created_by_c Performance Asc inx_s_workflow_user_fkcr_key3
s_modified_by_c Performance Asc inx_s_workflow_user_fkmd_key4
s_workflow_id_i + s_user_id_c Must be unique Asc/Asc inx_s_workflow_user_pk0

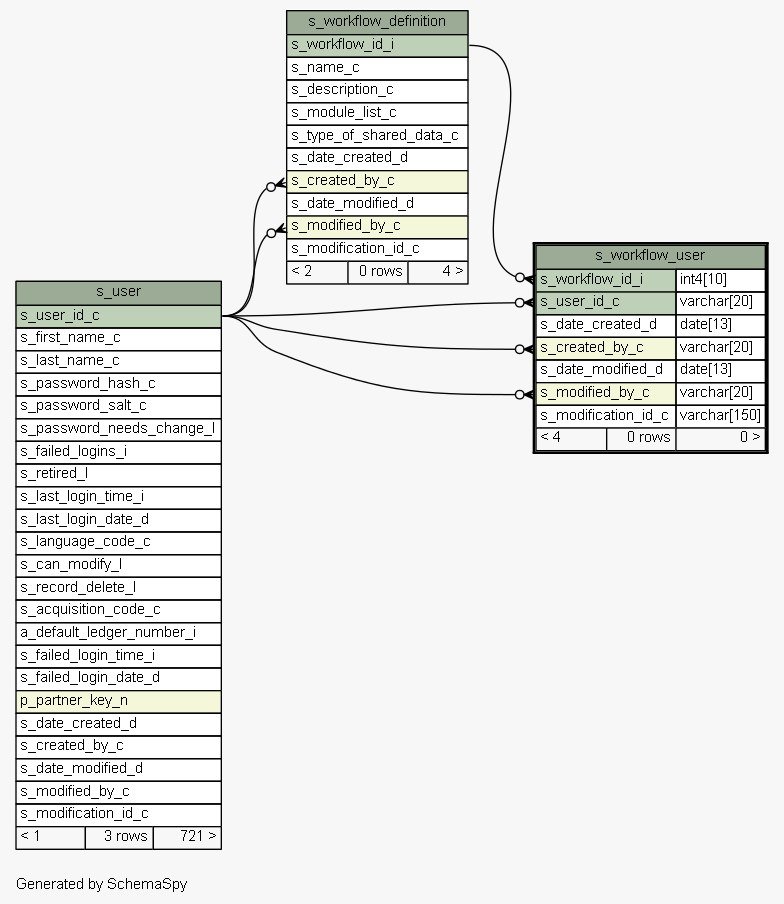

Close relationships  within of separation:
